Ground-mounted, IP54, 25 kW peak draw. Built around standard Indian electrical safety devices (RCBO, MCB, CT, energy meter, 30 kA surge protection). No third-party certification dependency for the components inside.
All four SKUs ship with the same software stack, the same protection devices, and the same ESP32 + CAN bus internals. Only slot count and footprint change.
| SKU | Slots | Footprint (W x H x D, mm) | Recommended use |
|---|---|---|---|
| E-6 | 6 | 900 x 1500 x 800 | Tier-2 launch site, single rider hub |
| E-9 | 9 | 1050 x 1650 x 800 | Suburban anchor station |
| E-12 | 12 | 1200 x 1800 x 800 | Metro corridor, reference SKU |
| E-15 | 15 | 1350 x 1950 x 800 | High-traffic depot, fleet operator HQ |

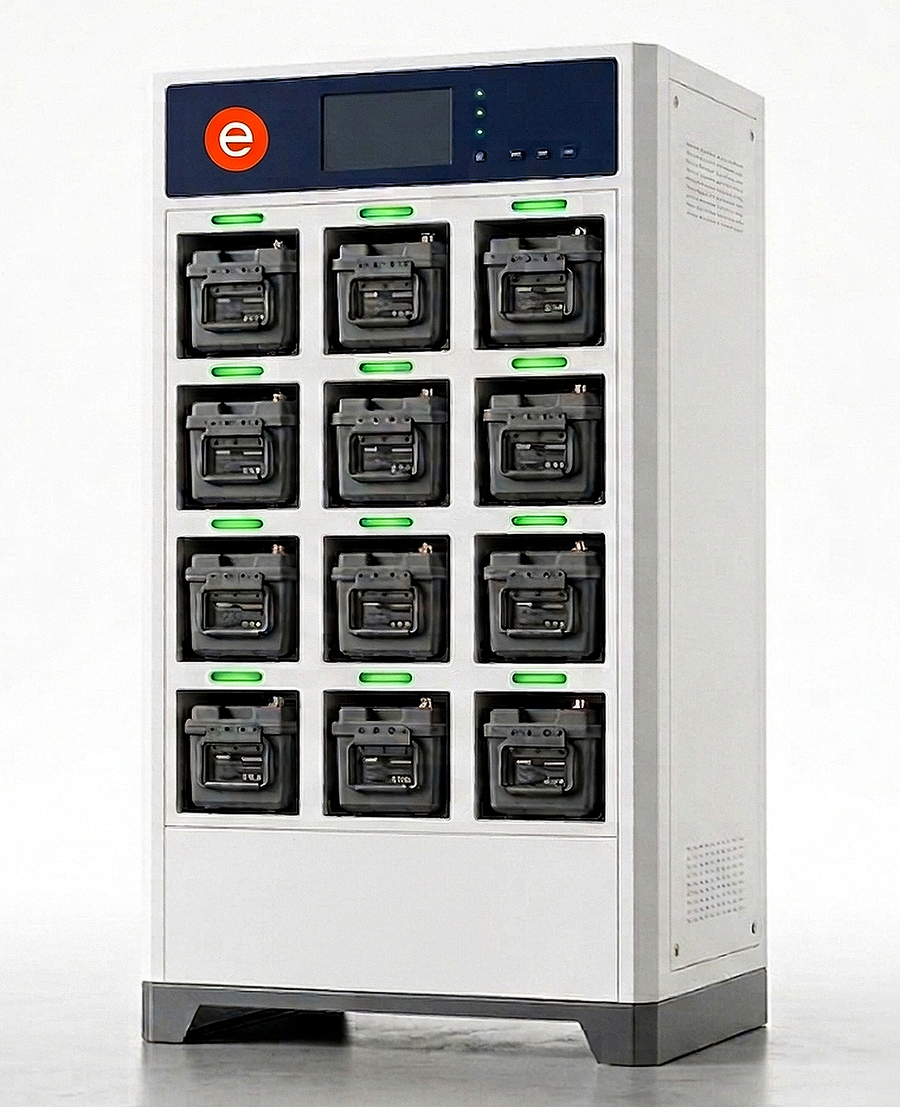

Each pod accepts a standard pack with handle on top, slides in on guide rails, locks against the rear contactor for charge + CAN-bus comms. Status LED above each slot mirrors what is visible from the front when doors are closed.
Engineering drawings for site survey and electrical contractor handoff. All four SKUs scale proportionally from the E-12 reference.
Not optional add-ons. Every cabinet leaves the factory with these in place.
Residual-current breaker with overcurrent protection. Individual slot isolation prevents one faulty pack from tripping the cabinet.
Current transformer per slot, revenue-grade energy meter at the cabinet head. Real kWh data into TimescaleDB.
Type 2 surge protective device at the cabinet input. Survives ordinary lightning-induced transients on Indian grids.
Earth-leakage protection. Trips within milliseconds on a touch fault. Required by Indian wiring rules for public-access equipment.
Dust-protected, splash-protected. Outdoor-rated. Survives Indian monsoons under a small canopy.
Voltage, current, SOC, SOH, cycle count, cell-level data. Streams over MQTT into the operator's tenant in real time.
12 months standard from date of invoice. Extends to 18 months on Annual Maintenance Contract. Above Okaya's published 7-15 months. Mid-market sweet spot.
Critical spares (slot controllers, ESP32 modules, contactors, touchscreens) stocked in Ahmedabad + Bangalore. Superseded parts ship at no additional cost.
Ship faulty unit to nearest service centre under standard warranty. Target turnaround 7 business days from receipt. On-site service available on AMC.
